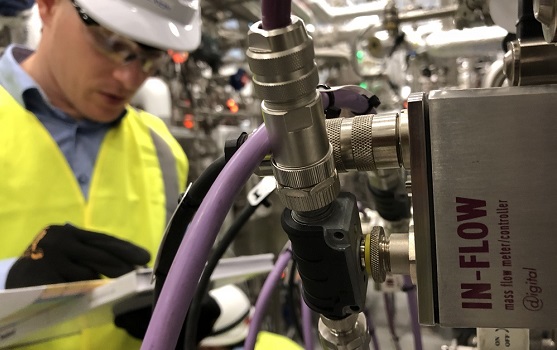

IN-FLOW High-FLOW Series

IN-FLOW의 High-FLOW Series입니다.
이 제품은 대유량의 청정 가스를 측정하기 위한 제품입니다.

PCB는 견고한 하우징에 수납이 되어 있으며,
제어 밸브는 가스 유량을 측정하고 제어하기 위해 일체형 또는 별도로 장착할 수 있습니다.

측정 가능 유량 범위는 아래와 같습니다.

Mass Flow Meters: 최저 0.4 ~ 20 m3n/h / 최대 220 ~ 11000 m3n/h
Mass Flow Controllers: 최저 0.4 ~ 20 m3n/h / 최대 10 ~ 500 m3n/h



INFLOW High-FLOW Series

Accuracy (incl. linearity)

: standard: ±0,5% Rd plus ±0,1% FS

Turndown

1:50 (in digital mode up to 1:187,5)

Repeatability

< 0,2% Rd

Settling time (controller)

standard: 1~2 seconds

Operating temperature

-10~+70°C  ( for ATEX cat. 3 max. 50°C )

Temperature sensitivity

zero: < 0,05% FS/°C;  / span: < 0,05% Rd/°C

Pressure sensitivity

0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2

Attitude sensitivity

max. error at 90° off horizontal 0,2% at 1 bar, typical N2

Warm-up time

30 min. for optimum accuracy / 2 min. for accuracy ± 2% FS

Power supply

+15~24 Vdc

Analog output/command

0~5 (10) Vdc or 0 (4)~20 mA

Digital communication

standard: RS232 / options: PROFIBUS DP, DeviceNetTM / Modbus-RTU, FLOW-BUS



어플리케이션

 발효 및 식품산업, 생명공학 , 화학 및 석유화학, 발전플랜트 등의 산업에서 공정가스 측정 및 제어



• 산업현장 및 특정 장소의 가스 소비량 측정 및 제어



• 연료 전지



INFLOW High-Flow Series

l높은 정확도 (standard 1% of FS)
l먼지 및 , 바람에대한 저항성  (IP65)
l방폭 인증 ATEX Zone 2 / FM Class I Div. 2 (options)
l대유량 측정

l아날로그 및 디지탈 통신지원 (RS232 or fieldbus interface)

Mass Flow Meter (MFM)

Ranges

Type of process connections

Series F-116AI/BI

min. 0,4 ~ 20 m3n/h
max. 10 ~ 375 m3n/h

Compression type couplings

Series F-106AI/~/GI

min. 0,4 ~ 20 m3n/h
max. 220 ~ 11000 m3n/h

"wafer type" for mounting
between flanges

Series F-107AI/~/DI

min. 0,4 ~ 20 m3n/h
max. 36 ~ 1800 m3n/h

flanged connection
(DIN or ANSI)



Mass Flow Meter (MFC)

Ranges

Type of process connections

Series F-206AI/BI

min. 0,4 ~ 20 m3n/h
max. 10 ~ 375 m3n/h

Compression type couplings
