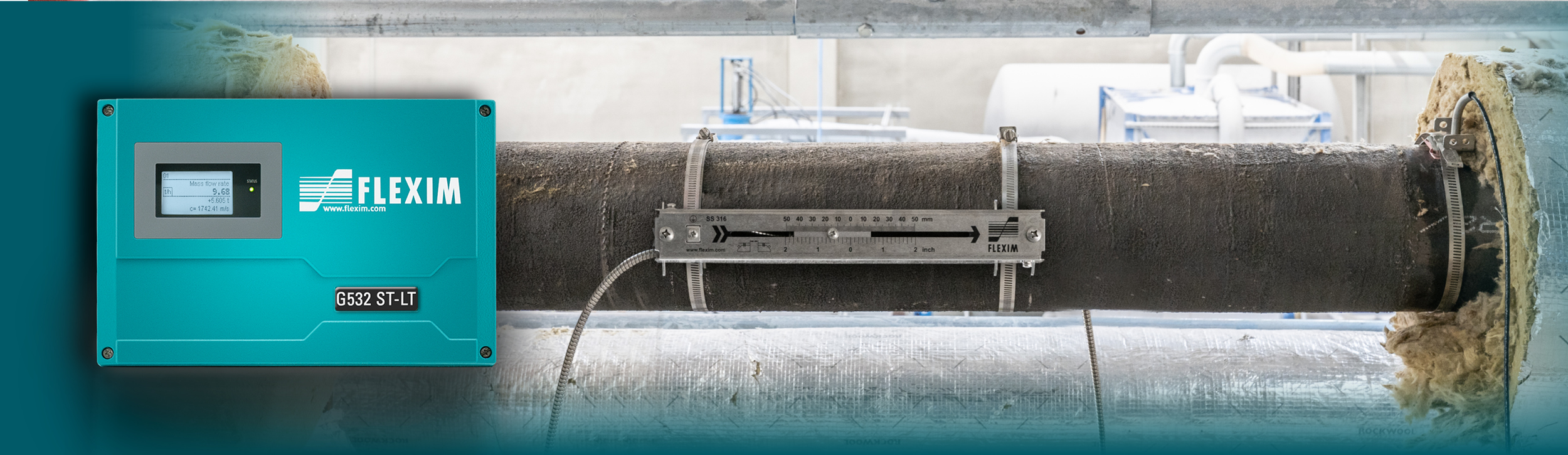

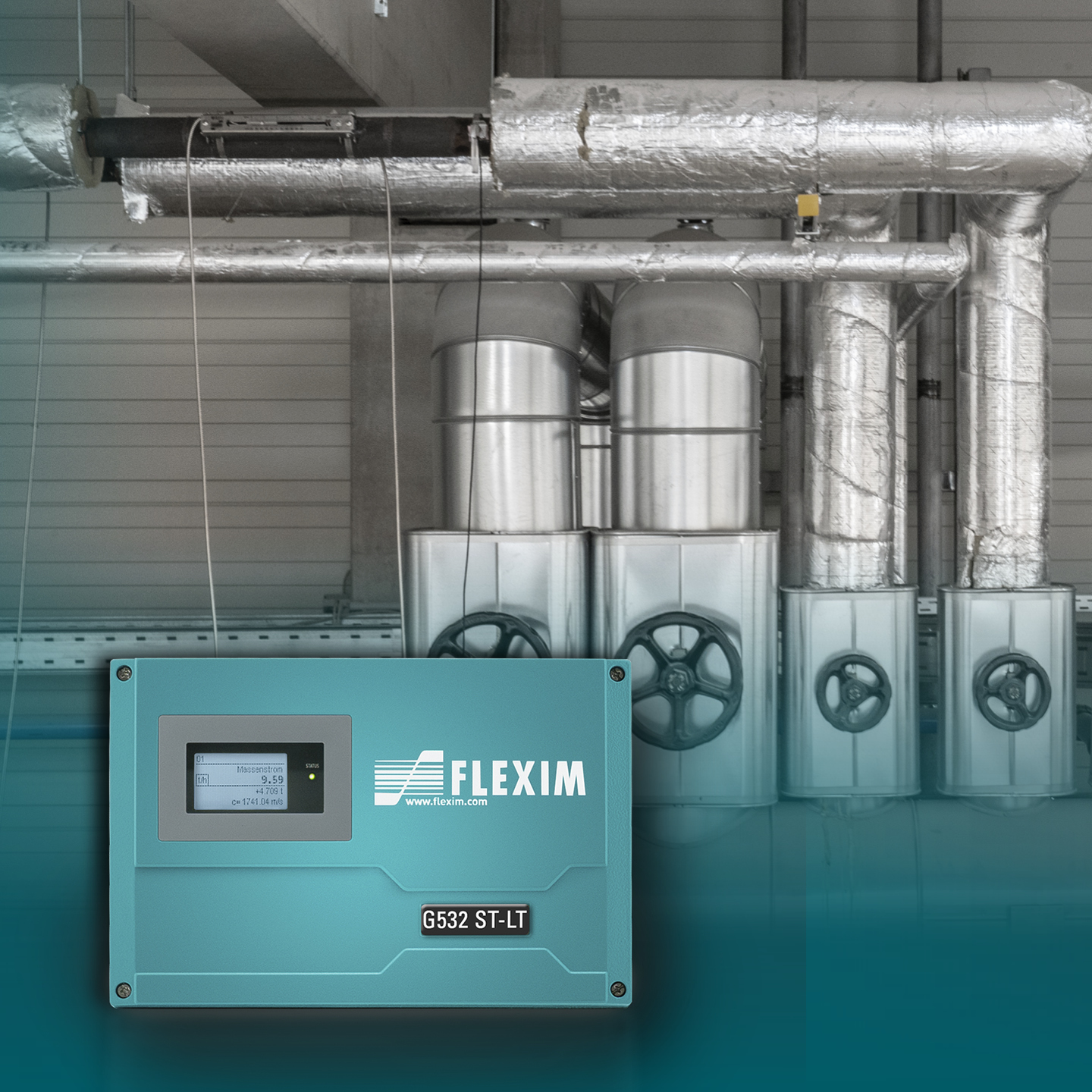

FLUXUS G532 ST-LT

Measurement uncertainty of

the measuring system

(volumetric flow rate)

±0.3% of the measured value ±0.005 m/s

Measurement uncertainty at

the measuring point

(volumetric flow rate)

±1 ~ 3% of the measured value ±0.005 m/s, depending on application

Repeatability

±0.15% of the measured value ±0.005 m/s

Flow channels

1

Media temperature

Saturated steam and superheated steam

Temperature Range

(pipe wall)

Max. 180 °C

Pressure

Min. 3 bar absolute

Pipe diameter range

23 mm ~ 400 mm

Flow velocity range

0.01 m/s ~ 60 m/s, depending on pipe diameter and transducer

Explosion protection

None

Outputs

1 4-20 mA active/passive, 2 Digital outputs (impulse, binary or frequency)

Not compatible with bus interface

Inputs

Pt100/Pt1000

Communication Interface

Modbus TCP, Modbus RTU, BACnet TCP, BACnet MS/TP, M-Bus, Profibus PA, FF H1

Advanced Meter Verification

Available

Synchronized Channel

Averaging

Not available

Additional Information

Have the feasibility of your unique application evaluated by a test
