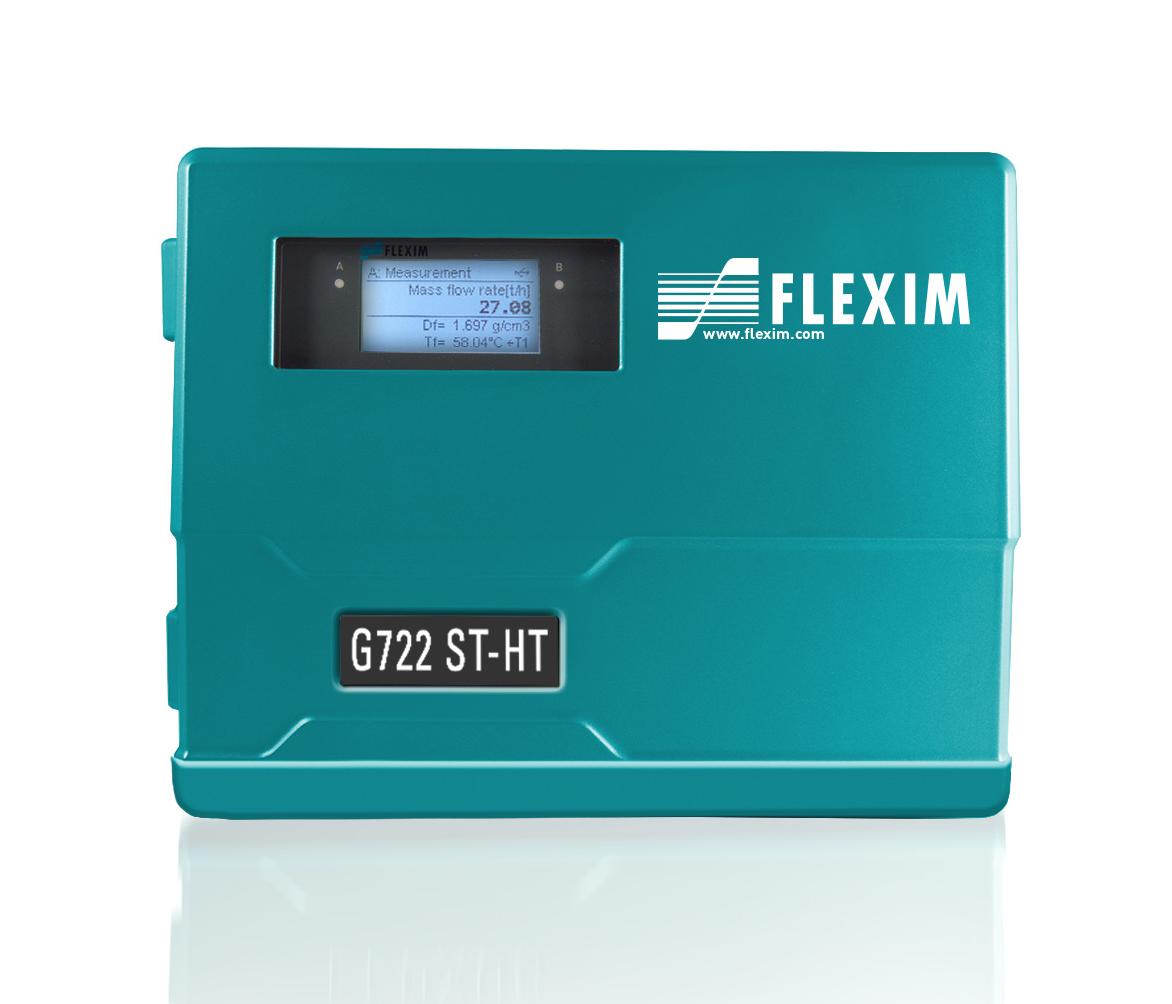

FLUXUS G722 ST-HT

Measurement uncertainty (volumetric flow)

±3% of reading*

Medium

Saturated steam and superheated steam

Measuring quantities

Volume flow, mass flow, flow velocity

Process temperature

100 - 400°C

Process pressure

1 -100bar

Pipe diameter range

10mm ~ 900mm

Repeatability

±1% of reading*

Explosion protection

(optional)
Transmitter : ATEX/IECEx Zone 2, FM Class I / Div 2
Transducers : ATEX/IECEx Zone 1/Zone 2, FM Class I / Div 2

Additional Information

Please have your specific application tested for feasibility
* turbulent flow with Reynolds ≥ 60.000
